Crystal Earthing

Crystal Series is developed considering the chemical earthing requirement of market who are looking for lower price market segment. The pipe used is of low thickness and Strip is of medium size welded from top to bottom. The material filled between the pipe and strip is per prevailing in this market by other manufacturer. The life expectancy of this series is 5- 7 years in normal soil.

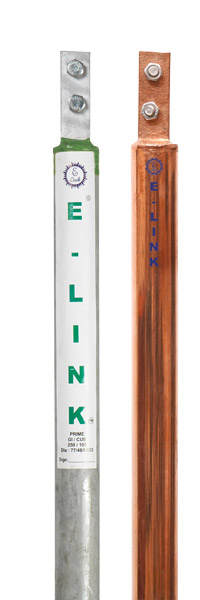

  • Galvenised Model
  • Copper Coated Model

Crystal Chemical Earthing
DUAL ELECTRODE TECHNOLOGY

  • Model No.

  • CRYSTAL - 302
  • CRYSTAL - 303
  • CRYSTAL - 501
  • CRYSTAL - 502
  • CRYSTAL - 503
  • CRYSTAL - 602
  • CRYSTAL - 603
  • CRYSTAL - 802
  • CRYSTAL - 803
  • CRYSTAL - 902
  • Length

  • 2 MTR.
  • 3 MTR.
  • 1 MTR.
  • 2 MTR.
  • 3 MTR.
  • 2 MTR.
  • 3 MTR.
  • 2 MTR.
  • 3 MTR.
  • 2 MTR.
  • Electrode Data

  • Outer Pipe Detail

  • 32 MM OD (1.6 mm Thk.)
  • 32 MM OD (1.6 mm Thk.)
  • 48 MM OD (1.6 mm Thk.)
  • 48 MM OD (1.6 mm Thk.)
  • 48 MM OD (1.6 mm Thk.)
  • 60 MM OD (1.6 mm Thk )
  • 60 MM OD (1.6 mm Thk )
  • 77 MM OD (1.6 mm Thk )
  • 77 MM OD (1.6 mm Thk )
  • 88 MM OD (1.9 mm Thk)
  • Inner Strip mm

  • 25*3
  • 25*3
  • 30*5
  • 30*5
  • 30*5
  • 30*5
  • 30*5
  • 40*6
  • 40*6
  • 40*6
  • GI

  • 50 Copper Coated Micron

  • 100 Copper Coated Micron

  • 250 Copper Coated Micron

Smart Earthing
Model No. Length Outer Pipe Detail Inner Stripe 50Copper Coated Micron 100 Copper Coated Micron 250 Copper Coated Micron
CRYSTAL – 302 2 MTR. 32 MM OD (1.6 mm Thk.) 25*3 Yes Yes Yes
CRYSTAL – 303 3 MTR. 32 MM OD (1.6 mm Thk.) 25*3 Yes Yes Yes
CRYSTAL – 501 1 MTR. 48 MM OD (1.6 mm Thk.) 30*5 Yes Yes Yes
CRYSTAL – 502 2 MTR. 48 MM OD (1.6 mm Thk.) 30*5 Yes Yes Yes
CRYSTAL – 503 3 MTR. 48 MM OD (1.6 mm Thk.) 30*5 Yes Yes Yes
CRYSTAL – 602 2 MTR. 60 MM OD (1.6 mm Thk ) 30*5 Yes Yes Yes
CRYSTAL – 603 3 MTR. 60 MM OD (1.6 mm Thk ) 30*5 Yes Yes Yes
CRYSTAL – 802 2 MTR. 77 MM OD (1.6 mm Thk ) 40*6 Yes Yes Yes
CRYSTAL – 803 3 MTR. 77 MM OD (1.6 mm Thk ) 40*6 Yes Yes Yes
CRYSTAL – 902 2 MTR. 88 MM OD (1.9 mm Thk) 40*6 Yes Yes Yes
CRYSTAL – 903 3 MTR. 88 MM OD (1.9 mm Thk) 40*6 Yes Yes Yes
Smart Earthing
