Earth Boss

E LINK Provide the complete range of Earth Boss that are designed to provide an earth connection point on a steel structure – the boss is welded onto steel vessels, tanks and other metal structures which body of structure require to ground. The earth bosses are manufactured from mild steel with stainless steel fittings – the earth boss size, material type and design configuration can be designed to accept onshore or offshore project applications.

Stainless steel manufactured from marine grade type SS316L can be be produced for corrosive applications in offshore applications including wind turbine base foundations where sea water splash, submersion and general exposure would cause rusting and oxidisation of standard mild steel type bosses. As standard are supplied with fixing bolts, flat washers and spring washer.

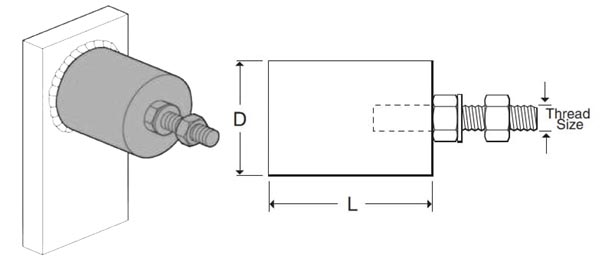

Model No. Dimensions Thread Size
ELB 5050 50mm x 50mm M10
ELB 5040 50mm x 40mm M10
ELB 5030 50mm x 30mm M10
ELB 4040 40mm x 40mm M10
ELB 4030 40mm x 30mm M10
earth boss
