Insulator

E-Link offers a premium range of DMC Insulators—designed for durability, safety, and performance across a wide spectrum of electrical and lightning protection applications.

✅  Reliable insulation for lightning protection systems
✅  Compatible with various strip sizes
✅  Robust design with long-lasting durability
✅  Available in multiple configurations for customized needs

Whether you’re working with standard or specialized strip sizes, our DMC Insulators ensure optimal insulation and secure mounting for your lightning protection setups—all at competitive prices.

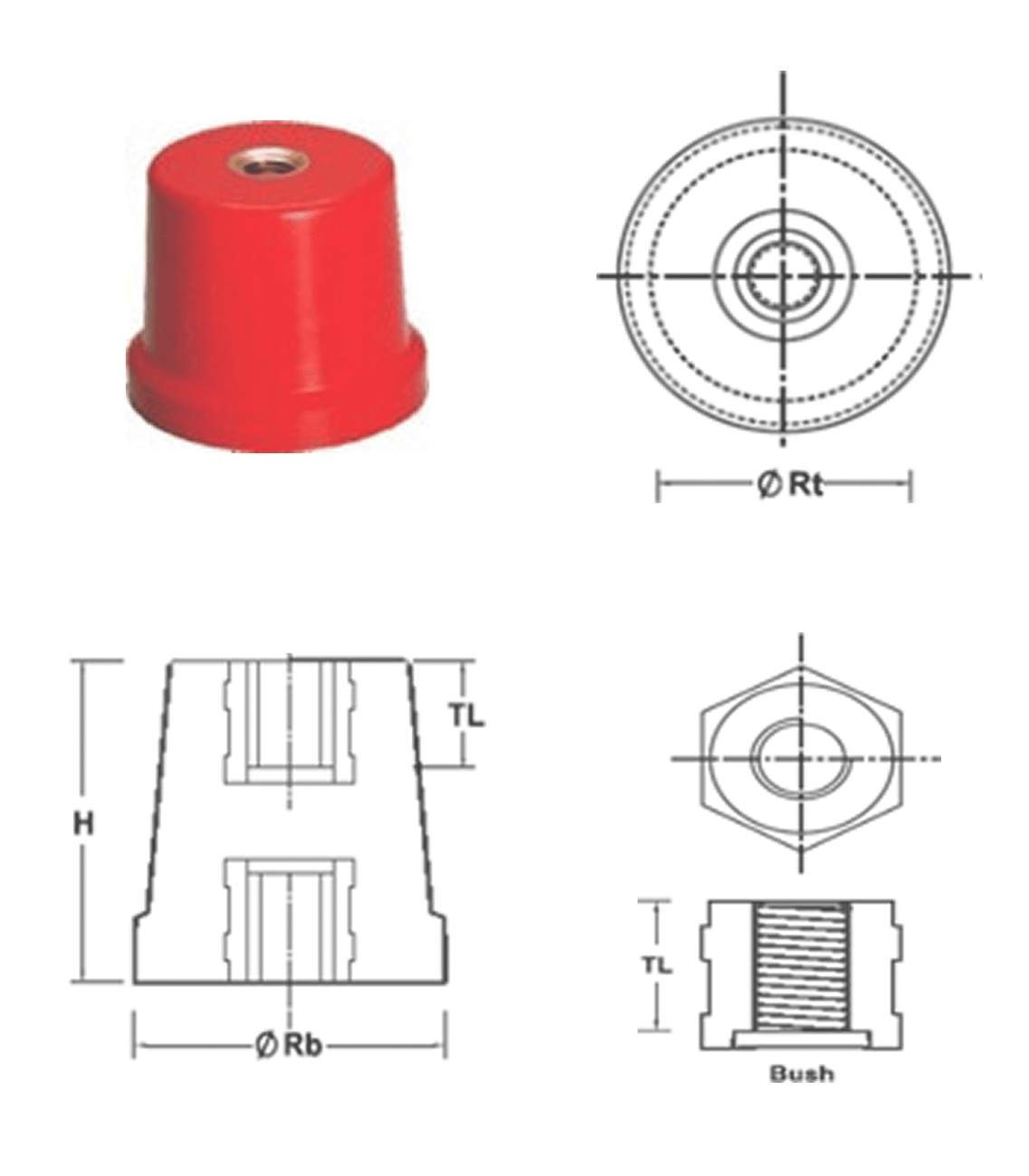

Conical Type DMC Insulator

Conical Type DMC Insulator
Dimension TL
Height Rt Rb
20 16 20 5
25 19 25 7
30 25 30 9
35 28 35 12
40 33 40 12
45 36 45 12
50 40 50 17
60 40 50 17
70 41 50 22

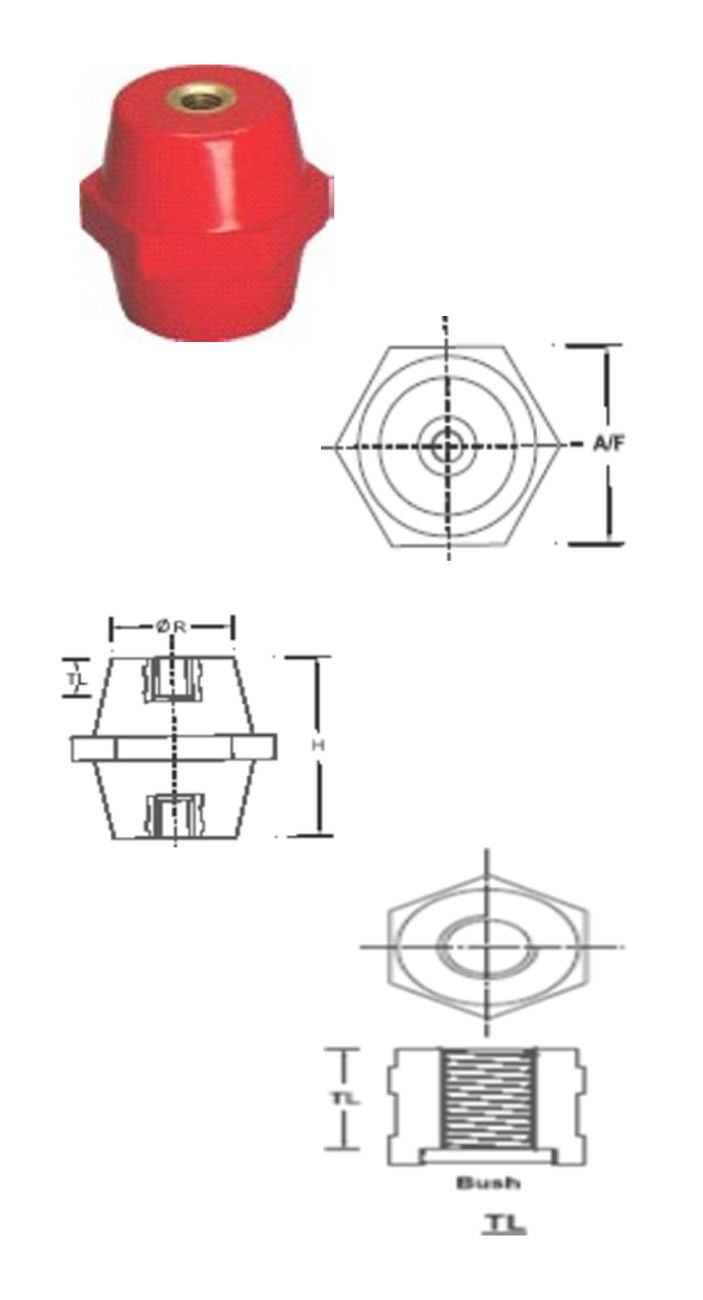

HEX Type DMC Insulator

Conical Type DMC Insulator
Dimension TL
Height Rt Rb
20 18 14 5
25 19 22 7
25 25 17 7
25 33 25 7
30 32 24 9
30 32 25 9
35 32 26 12
35 40 26 12
35 32 33 12
40 38 30 12
40 39 31 12
45 40 32 12
50 46 35 12
50 46 35 17
50 40 50 17
60 50 38 17
65 55 41 17
70 55 41 22
75 53 42 22
76 50 34 22

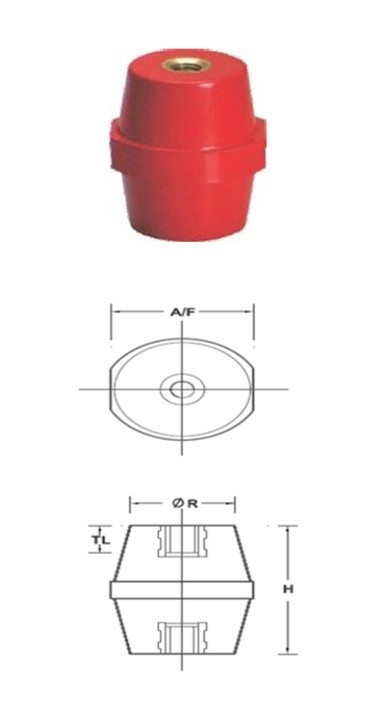

Drum Type DMC Insulator

Conical Type DMC Insulator
Dimension TL
Height Rt Rb
20 18 14 5
25 21 16 7
30 33 25 9
30 33 26 9
35 32 26 9
35 32 26 12
40 39 30 12
40 39 31 12
45 40 31 12
45 41 32 12
50 48 36 17
50 48 35 17
60 52 38 17
60 52 37 17
65 55 41 22
70 55 42 22
76 55 42 22

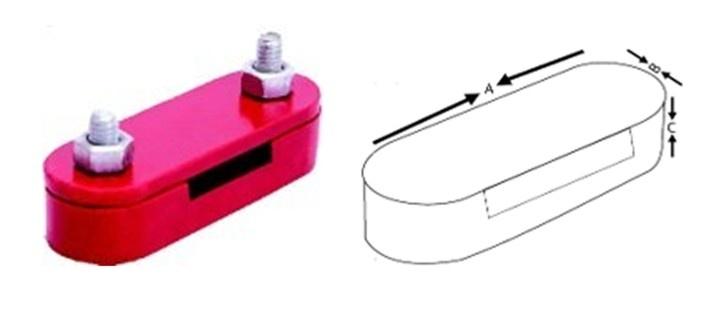

DC Clip /Earthing Strip Insulator

Strip Size Dimension
A B C
25 x 3 76 24 25
25 x 6 76 24 25
32 x 3 76 24 25
32 x 6 76 24 25
40 x 3 76 24 25
40 x 6 82 24 25
50 x 3 82 24 25
50 x 6 82 24 25
